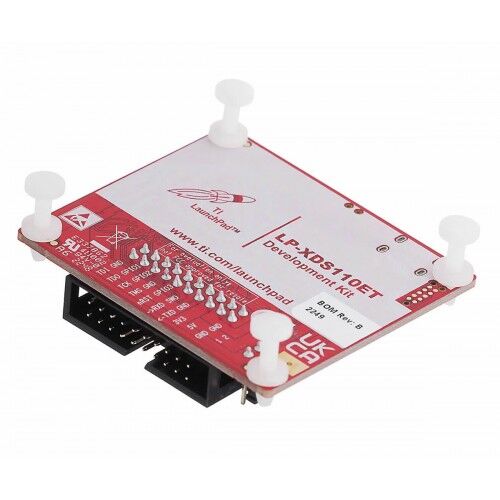

Texas TI LP-XDS110ET LaunchPad Development Kit Debugger

MSP432E401Y CC2340R5-Q1 CC2744R7-Q1 CC2745P10-Q1 CC2745R10-Q1 CC2745R7-Q1 CC2340R2 CC2340R5 CC2755R10 CC1312PSIP CC1314R10 CC1354P10 CC1354R10

Ürün orijinal Texas Ins. ürünüdür. Kullanımı ile alakalı sadece üreticiden detek alınabilir. Spesifik bir ürün olduğu ve durumu anlaşılamayacağı için iade alınmayacaktır. Alım kararını buna göre veriniz.

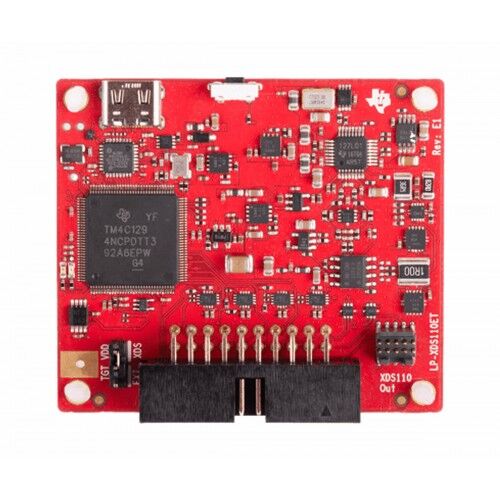

     The LP-XDS110ET LaunchPad development kit debugger is a tool to program and debug Texas Instruments (TI) microcontrollers, microprocessors and DSP XDS-compatible devices. The LP-XDS110ET has been designed to connect directly to split Launchpad development kits via the 20-pin edge connector, however they can also be used to debug other LaunchPad development kits and XDS-compatible devices using the XDS110 out connector. The LP-XDS110ET has added circuitry for power measurements to support EnergyTrace software.

Features:

•     Plug & play with split LaunchPad development kit designs using 20-pin edge connector
•     10-pin XDS110 out connector
•     USB-C to power debugger and communicate with host computer
•     UART serial port
•     Power profiling uisng EnergyTrace++

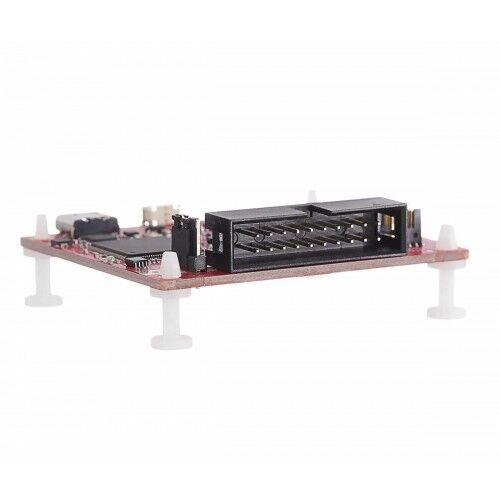

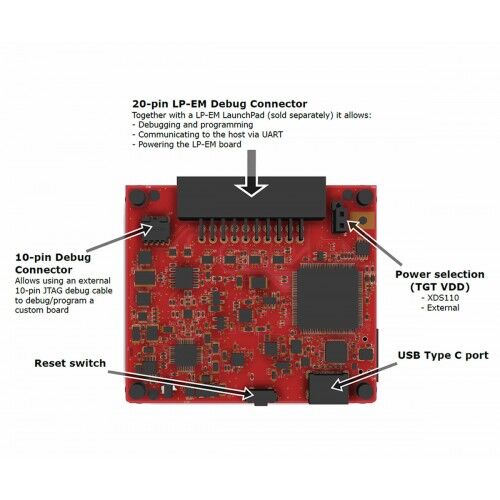

     To use your new LP-XDS110ET Debug Probe with an LP-EM LaunchPad (sold separately), you need to connect the 20-pin LP-EM Debug connector to the corresponding header on theLP-EM LaunchPad.

     Simply connect the edge connector of the Debug Probe to the edge connector of the LaunchPad and connect the USB port of the Debug Probe to the host computer. A secondary UART communications channel will also be available and power to the LaunchPad will be provided directly

Supported products:

• Arm Cortex-M4 MCUs
  • MSP432E401Y — SimpleLink 32-bit Arm Cortex-M4F MCU with ethernet, CAN, 1MB Flash and 256kB RAM
• Automotive wireless connectivity products
  • CC2340R5-Q1 — Automotive-qualified SimpleLink Bluetooth Low Energy wireless MCU with 512-kB flash
  • CC2744R7-Q1 — Automotive SimpleLink Bluetooth LE wireless MCU with 864kB flash, HSM, APU
  • CC2745P10-Q1 — Automotive SimpleLink Bluetooth LE wireless MCU with 1MB flash, HSM, APU, CAN-FD, +20dBm
  • CC2745R10-Q1 — Automotive SimpleLink Bluetooth LE wireless MCU with 1MB flash, HSM, APU, CAN-FD
  • CC2745R7-Q1 — Automotive SimpleLink Bluetooth LE wireless MCU with 864kB flash, HSM, APU, CAN-FD
• Low-power 2.4-GHz products
  • CC2340R2 — SimpleLink 32bit Arm Cortex-M0+ 2.4GHz wireless MCU with 256kB flash
  • CC2340R5 — SimpleLink 32bit Arm Cortex-M0+ 2.4GHz wireless MCU with 512kB flash
  • CC2755R10 — SimpleLink 32-bit Arm Cortex-M33 multiprotocol wireless MCU with 1MB flash, HSM, APU
• Sub-1 GHz wireless MCUs
  • CC1312PSIP — Sub-1 GHz system-in-package (SiP) module with integrated power amplifier
  • CC1314R10 — SimpleLink Arm Cortex-M33 Sub-1 GHz wireless MCU with 1-MB flash and up to 296 kB of SRAM
  • CC1354P10 — SimpleLink Arm Cortex-M33 multiband wireless MCU with 1MB flash, 296KB SRAM, integrated power amp
  • CC1354R10 — SimpleLink Arm Cortex-M33 multiband wireless MCU with 1-MB flash and up to 296-KB SRAM

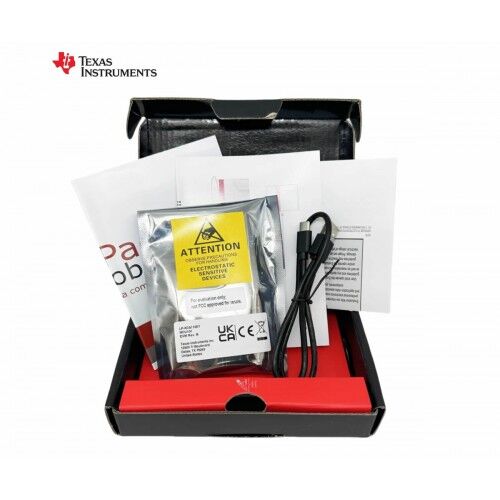

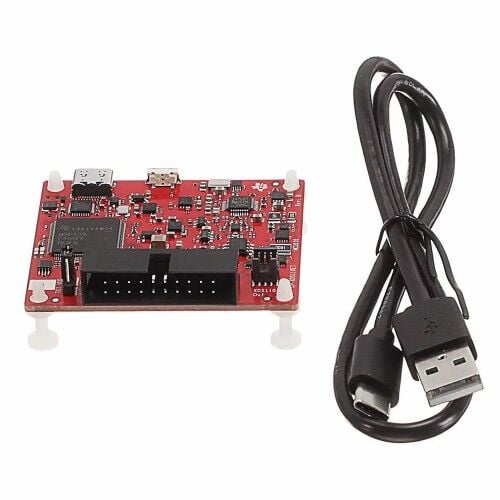

Paket içeriği:

•  1 Adet LP-XDS110ET
•  1 Adet Usb kablo
•  Hızlı başlangıç broşürü
