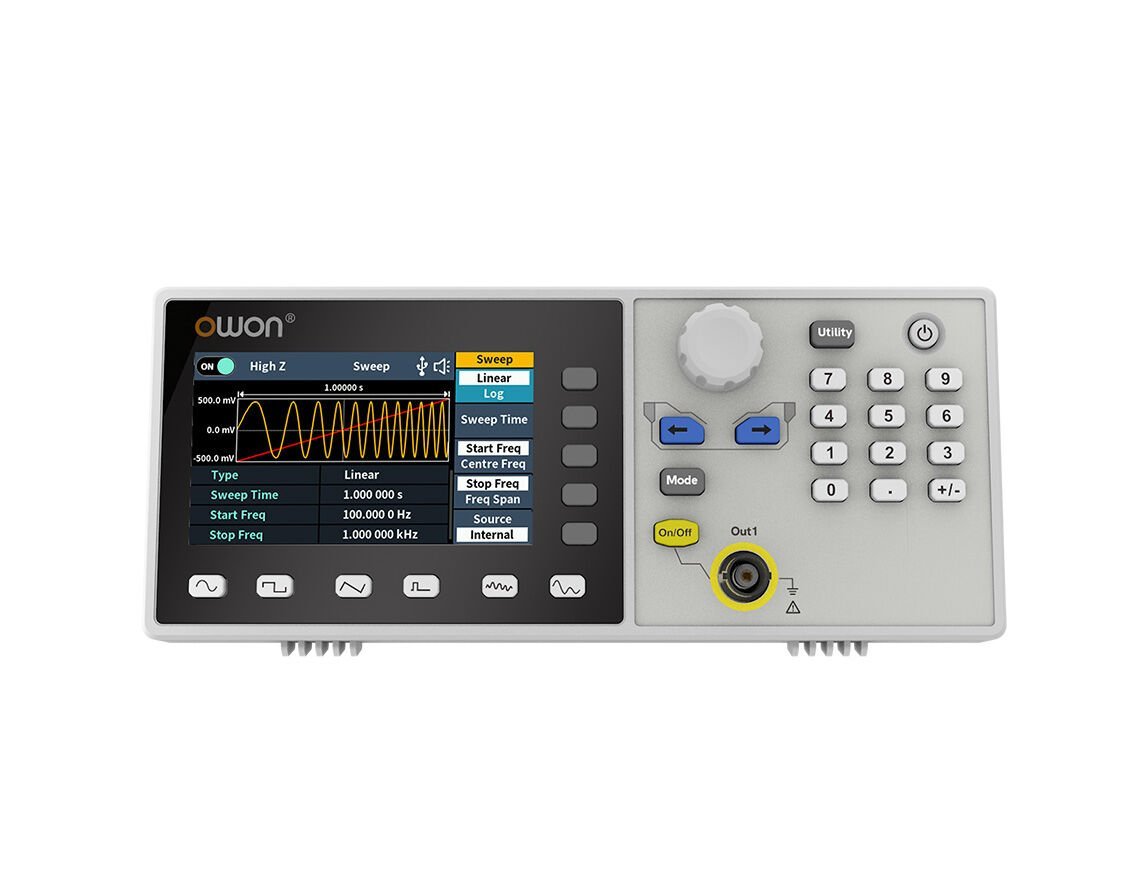

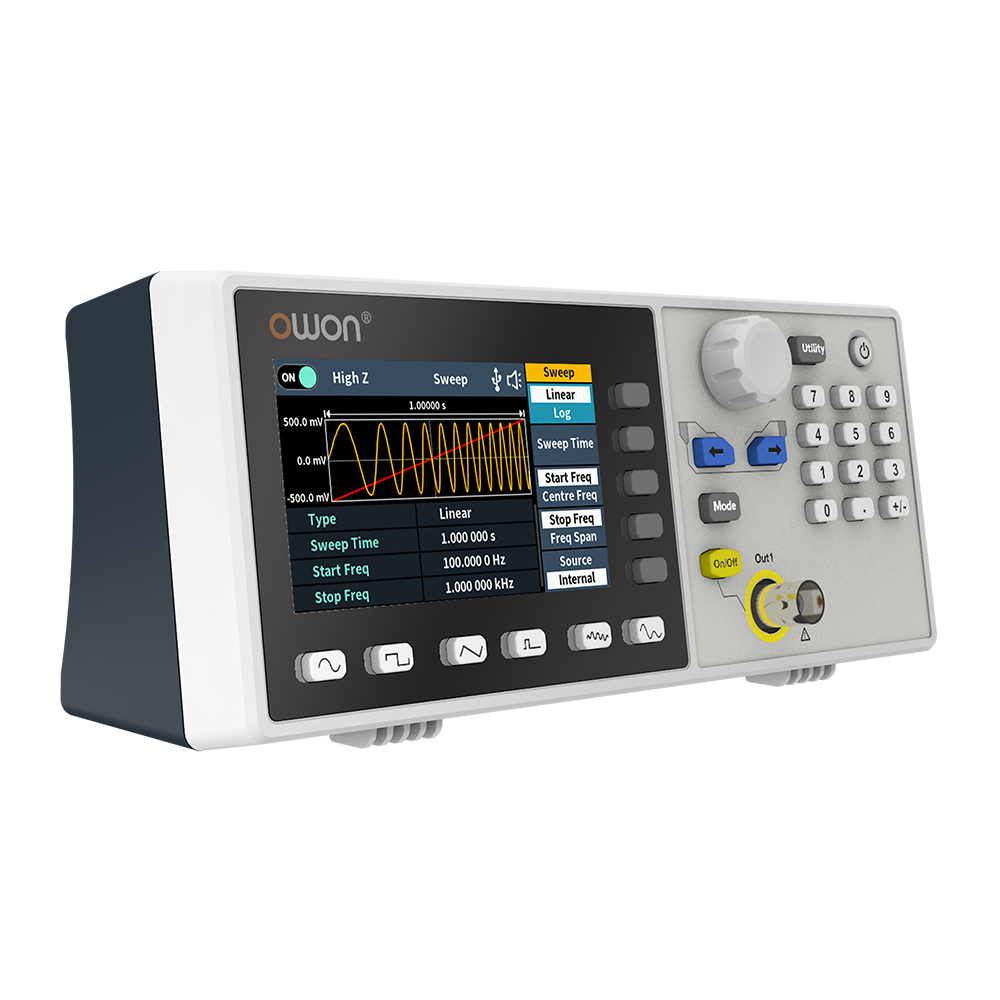

Owon DGE1030 30 MHz Tek Kanal Waveform Jeneratör
6.311,67 TL
1.220,26 TL den başlayan taksitlerle!
Kategori
Marka
Stok Kodu
DGE1030
Garanti Süresi
24 Ay
Fiyat
121,55 USD + KDV
Havale
6.185,44 TL
(%2,00 havale indirimi)
DGE1000 Serisi 1CH Dalga Formu Jeneratörü Genel Özellikler:
- 30MHz/60MHz frekans çıkışı
- Maksimum 300MSa/s Örnekleme hızı, Dikey çözünürlük 1μHz
- 14 bit Dikey Çözünürlük, 8K Arb dalga formu uzunluğu
- Kapsamlı dalga formu çıkışı: 5 temel dalga formu ve 150 yerleşik rastgele dalga formu
- Kapsamlı modülasyon fonksiyonları: AM, FM, PM, FSK, Süpürme ve Patlama
- SCPI desteklenir
- 3,6 inç (480 × 260 piksel) LCD
DGE1030 Genel Özellikleri:
- 35 MHz Frekans Output
- Tek Kanal
- 125MSa/s Örnekleme Oranı
- 14 Bits
- Standart Dalga Formları: sine, square, pulse, ramp, and noise
| Model | DGE1030 | DGE1060 |
|---|---|---|
| Channel | 1 | |
| Frequency Output | 35MHz | 60MHz |
| Sample Rate | 125MSa/s | 300MSa/s |
| Vertical Resolution | 14 bits | |
| Waveform | ||
| Standard Waveform | sine, square, pulse, ramp, and noise | |
| Arbitrary Waveform | exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform |
|
| Frequency | ||
| Sine | 1μHz - 30MHz | 1μHz - 60MHz |
| Square | 1μHz - 15MHz | 1μHz - 20MHz |
| Pulse | 1μHz - 15MHz | 1μHz - 20MHz |
| Ramp | 1μHz - 1MHz | 1μHz - 2MHz |
| Noise | 20MHz (-3dB，typical) | |
| Arbitrary Waveform | 1μHz -10MHz | |
| Frequency Resolution | 1 μHz or 7 significant figures | |
| Frequency Stability | ±30 ppm at 0±40℃ | |
| Frequency Aging Rate | ±30 ppm per year | |
| Arbitrary | ||
| Waveform Length | 2 - 8K points | |
| Sample Rate | 125Ma/s | 300Ma/s |
| Amplitude | ||
| into 50Ω Load | 1mVpp - 20Vpp（≤10MHz） 1mVpp - 4Vpp （≤60MHz） |
|
| DC Offset Range (AD+DC) |
±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω |
|
| DC offset Resolution | 1mV or 4digits | |
| Load Impedance | 50Ω (typical) | |
| DC offset Accuracy | ±(1 % of |setting| + 1 mV + amplitude Vpp x 0.5%) | |
| Modulation | ||
| Type | AM, FM, PM, FSK, sweep, Burst | |
| Internal Modulation Frequency | 2 mHz to 100 kHz | |
| Sweep | ||
| Carrier | Sine, rectangular wave, ramp wave, arbitrary wave(Except DC) | |
| Minimum/Maximum Starting Frequency |
2mHz（minimum）/ maximum frequency of corresponding carrier | |
| Minimum/Maximum Termination Frequency |
2mHz（minimum）/ maximum frequency of corresponding carrier | |
| Trigger Source | internal, manual | |
| Burst | ||
| Waveform | Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC) |
|
| Types | N-Cycle | |
| Trigger source | Internal, manual | |
| Carrier frequency | 1μHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2 | |
| Input / Output | ||
| Display | 3.6-inch TFT LCD with resolution 480 x 272 | |
| Communication Interface | USB Device | |
| Mechanical specifications | ||
| Dimension (W×H×D) | 200mm x 68.5mm x 74.5mm | |
| Weight (without package) | 0.5kg | |
