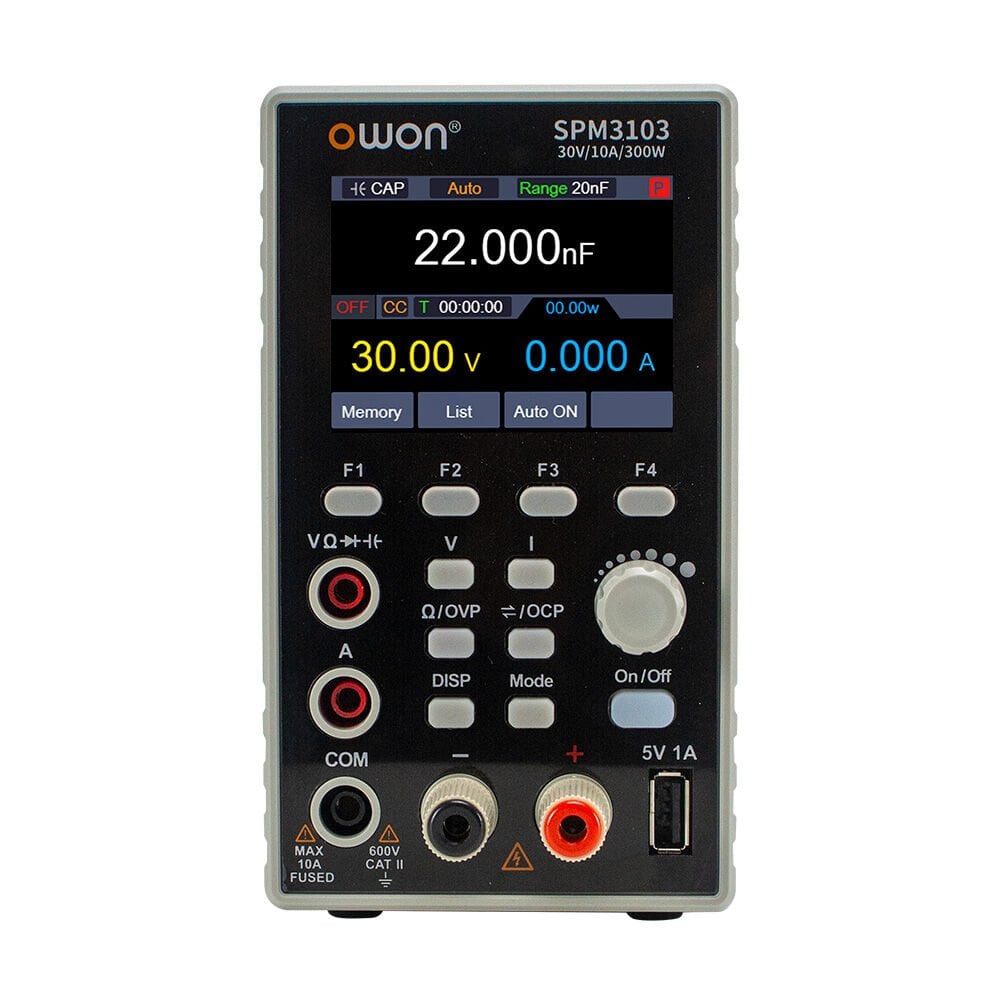

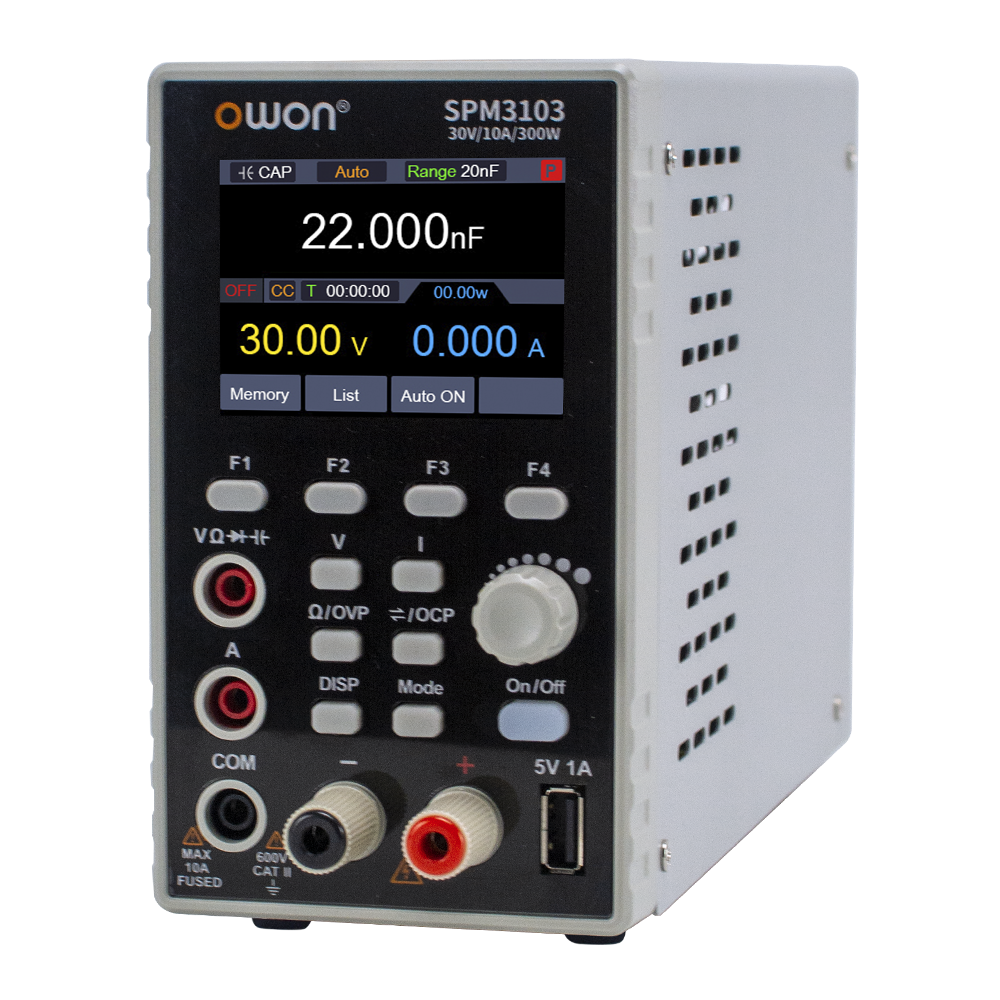

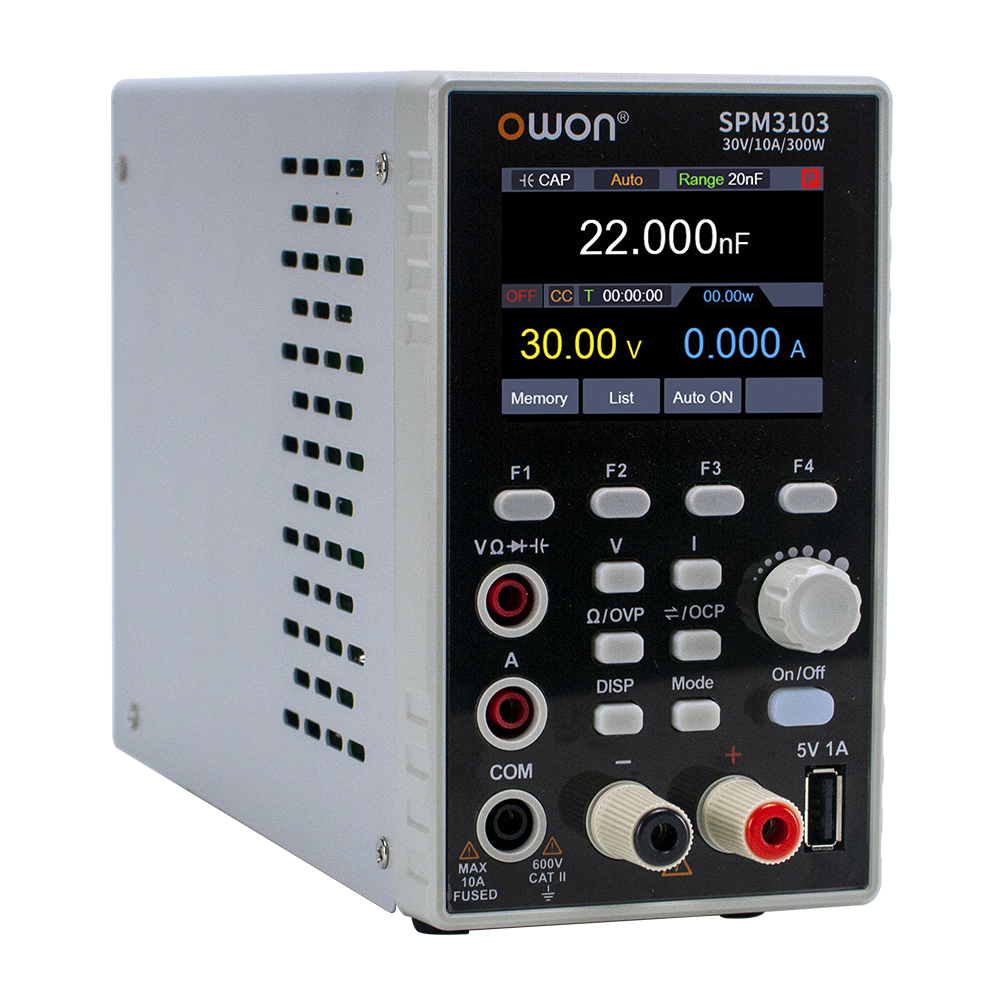

Owon SPM3103 300W 30v 10A DC Power Multimetre
8.072,39 TL
1.560,66 TL den başlayan taksitlerle!
Kategori
Marka
Stok Kodu
SPM3103
Garanti Süresi
24 Ay
Fiyat
155,84 USD + KDV
Havale
7.910,94 TL
(%2,00 havale indirimi)
Owon SPM3103 300W 30v 10A DC Power Multimetre
Owon SPM Serisi Genel Özellikler:
OWON SPM Serisi 1 CH DC Güç Multimetresi
- DC güç kaynağı+multimetre
- Kolay taşıma için küçük gövde
- USB iletişim arayüzü, SCPI desteği
Güç Kaynağı Özellikleri:
- 150W/300w çıkış gücü
- Yüksek çözünürlük: 10mV / 1mA
- Liste dalga formu düzenleme çıkışı, düzenlenebilir 10 grup zamanlama çıkış işlevi
- Aşırı voltaj / aşırı akım koruması
- Çıkış voltajı ve akım eğrisi izleme işlevi
Multimetre Özellikleri:
- 4 1/2 basamaklı multimetre
- Gerilim, akım, kapasitans, direnç, süreklilik ve diyot testini destekler
| Model | SPM3051 | SPM6053 | SPM3103 | SPM6103 |
|---|---|---|---|---|
| Channel | Single Channel Output | |||
| Total Output Power | 150W | 300W | ||
| Channel Output | 0 - 30V / 0 - 5A | 0 - 60V / 0 - 5A | 0 - 30V / 0 - 10A | 0 - 60V / 0 - 10A |
| Display | 2.8 inch color LCD display | |||
| Interface | USB Device, USB Host (5V1A) | |||
| Dimension(W x H x D) | 82 x 142 x 226 (mm) | |||
| Working Temperature | 0 - 40℃ | |||
| Weight | Approx. 1.5kg | |||
＋DC Power Specifications
The instrument must be operated continuously for more than 30 minutes at the specified temperature to ensure the following parameters.
| Model | SPM3051 | SPM6053 | SPM3103 | SPM6103 | |
|---|---|---|---|---|---|
| Rated Output (0℃-40℃) |
Voltage | 0 - 30V | 0 -60V | 0 - 30V | 0 -60V |
| Current | 5A | 5A | 10A | 10A | |
| Output Power | 150W | 300W | 300W | 300W | |
| Load Regulation | Voltage | ≤30mV | |||
| Current | ≤20mA | ||||
| Power Regulation | Voltage | ≤30mV | |||
| Current | ≤20mA | ||||
| Setting Resolution | Voltage | 10mV | |||
| Current | 1mA | ||||
| Readback Resolution | Voltage | 10mV | |||
| Current | 1mA | ||||
| Value Resolution (within 12 months) (25℃±5℃) |
Voltage | ≤0.1% ± 20mV | ≤0.1% ± 30mV | ||
| Current | ≤0.05% ± 10mA | ||||
| Readback Value Resolution (25℃±5℃) |
Voltage | ≤0.1% ± 20mV | ≤0.1% ± 30mV | ||
| Current | ≤0.1% ± 10mA | ||||
| Ripple/Noise(*) | Voltage(Vp-p) | ≤30mVp-p | ≤50mVp-p | ||
| Voltage (rms) | ≤3mVrms | ≤5mVrms | |||
| Current (rms) | ≤30mAp-p | ||||
| Output temperature coefficient (0℃-40℃) |
Voltage | 100ppm/℃ | |||
| Current | 200ppm/℃ | ||||
| Readback temperature coefficient | Voltage | 100ppm/℃ | |||
| Current | 200ppm/℃ | ||||
| Response Time(50%-100% rated load) | ≤1.0ms | ||||
| Storage | 4 groups of data | ||||
* Noise bandwidth 20MHz, ripple bandwidth 1MHz, connect 10uF electrolytic capacitor in parallel with 0.1uF ceramic capacitor to the output terminal for testing.
＋Multimeter Specifications
| Full Scale Reading | 4½ digits | Auto Range | √ |
|---|---|---|---|
| Measure | Voltage, Current, Capacitance, Resistance, Continue，Diode(0-2V) test | ||
| Capacitance | 20.000nF,200.00nF,2.0000uF,20.000uF,200.00uF, 2.0000mF: ±(3.0%±10digit) | ||
| Voltage | DCV: 200.00mV: ±(0.3%±10digit), 2.0000V, 20.000V, 200.00V,1000V: ±(0.3%±5digit), ACV: 200.00mV, 2.0000V, 20.000V, 200.00V: ±(0.8%±10digit) 750V: ±(1%±10digit) |
||
| Current | DCA: 200.00mA:±(0.8%±10digit),10.000A: ±(2.5%±10digit) ACA: 200.00mA:±(1%±10digit),10.000A: ±(2.8%±10digit) |
||
| Impedance | 200.00Ω,2.0000kΩ,20.000kΩ,200.00kΩ,2.0000MΩ: ±(0.8%±10digit),20.000MΩ: ±(1%±3digit) 100MΩ: ±(5%±10digit) |
||
