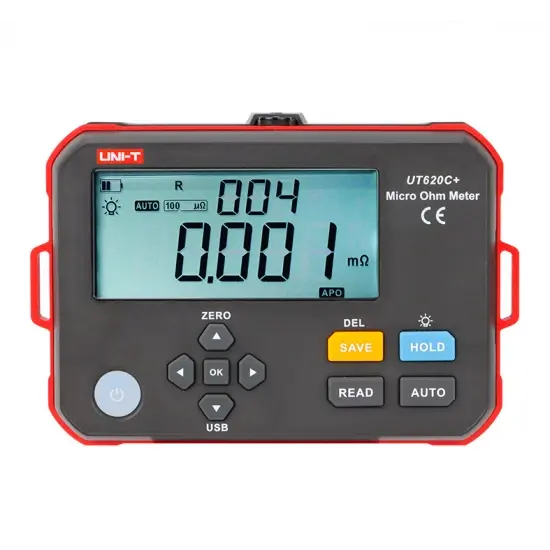

Unit UT620C+ Dijital Mikro Ohm Metre
|
Function |
Range |
Resolution |
Acurracy |
|
DC Resistance measurement |
0.001mΩ～10.000mΩ |
0.001mΩ |
±0.1%±20dgt |
|
10.01mΩ～100.00mΩ |
0.01mΩ |
||
|
100.1mΩ～1000.0mΩ |
0.1Ω |
||
|
1.001Ω～10.000Ω |
0.001Ω |
||
|
10.01Ω～100.00Ω |
0.01Ω |
||
|
100.1Ω～1000.0Ω |
0.1Ω |
||
|
1.001KΩ～10.000KΩ |
0.001KΩ |
||
|
10.01KΩ～100.00KΩ |
0.01KΩ |
||
|
100.1KΩ～300.0KΩ |
0.1KΩ |
||
|
Features |
|||
|
Function |
1. Conductor resistance measurement of cables; 2. Contact resistance measurement of switches and relays; 3. Resistance measurement of coils, motors, transformer windings; 4. Resistance measurement between metal riveted parts and metal parts; 5. Low impedience measurement; 6. Conductor resistance measurement of the connection part between the grounding grid and the grounding electrode; |
||
|
Measurement method |
Four-wire measurement |
||
|
Screen |
LCD screen (71 mm×52mm) |
||
|
Backlight |
√ (Controllable gray and white screen) |
||
|
Response time |
Around 2times/sec |
||
|
Power supply |
DC 3.7V 2000mAh lithium battery |
||
|
Power |
Measurement power: ≤8W |
||
|
Data storage |
500 set |
||
|
Overload protection |
√ |
||
|
Auto power off |
√ |
||
|
Measurement current |
≥1A |
||
|
Open circuit voltage |
≤4.2V |
||
|
Operating temperature |
18℃～28℃; below 70%rh |
||
|
Storage temperature |
-15℃～50℃; below 70%rh |
||
|
Insulation resistance |
Above 10MΩ (the voltage between circuit and shell: 500V) |
||
|
Withstand voltage |
AC 3700V(between circuit and shell) |
||
|
Applicable safety regulations |
IEC61010-1; CAT Ⅲ 600V; Pollution degree 2 |
