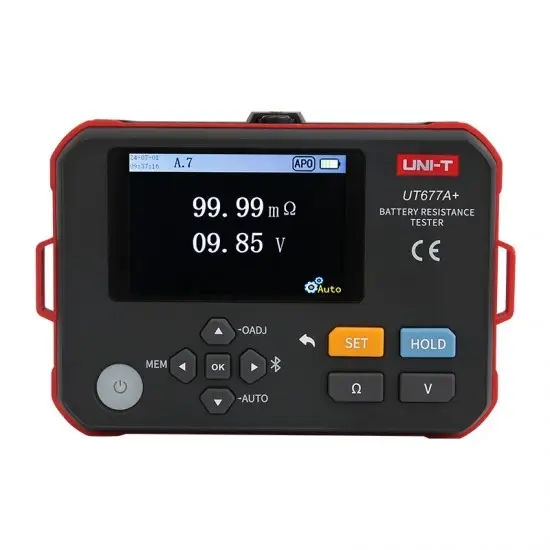

Unit UT677A+ Pil Batarya İç Direnç Test Cihazı
|
Function |
Range |
Resolution |
|
Battery Internal resistance range |
0.000mΩ~3mΩ / ±1%fs. ±20dgt |
1uΩ |
|
3.000mΩ~30mΩ / ±0.5%fs. ±15dgt. |
10uΩ |
|
|
3.000mΩ~300mΩ / ±0.5%fs. ±15dgt. |
100uΩ |
|
|
300mΩ~3Ω /±0.5% fs. ±15dgt. |
100mΩ |
|
|
Battery Voltage range |
0.000V~±7 V/±0.2%fs. ±10dgt. |
1mV |
|
7 V~±71.00V/±0.2 % fs. ±10dgt. |
||
|
Temperature range |
-10.0°C~60.0°C (single range)/ ±1.0℃ |
0.1℃ |
|
Accuracy Guaranteed Temperature Humidity |
23℃±5℃, <75%rh |
|
|
Features |
||
|
Measuring method |
1. Internal resistance measurement: 1KHz AC 4-terminal test method, open-circuit terminal voltage 3V max 2. Measuring current: 2.0mA~200mA (different measuring currents in different ranges) 3. Temperature measurement: NTC temperature sensor (10KΩ at 26°C) 4. A/D conversion method: successive approximation type 5. Display update frequency: 5 times/second |
|
|
Screen |
3.5 inches (320*240, 16-bit true color screen) |
|
|
Response time |
200ms |
|
|
Measuring time |
About 2 sec |
|
|
USB interface |
Read real-time measurement values, read historical measurement records |
|
|
Bluethooth app |
√ |
|
|
Data hold and storage |
1. Manual hold and storage, automatic hold and storage 2. Up to 5000 set measurement data storage |
|
|
Measurement judgment function |
PASS, WARNING, FAIL judgment thresholds can be preset |
|
|
Power |
1. DC 3.7V lithium battery 2. 5-bar display of power, reminding to charge in time |
|
|
Power consumption |
300mA MIN/500mA MAX |
|
|
Automatic shut-down |
Around 15 minutes |
|
|
Weight |
480g (including battery) |
|
|
Dimension |
190mm×121mm×51mm (L*W*H) |
|
|
Working temperature and humidity |
-10℃～40℃; below 80%RH |
|
|
Storage temperature and humidity |
-20℃～60℃; below 70%RH |
|
|
Insulation resistance |
Above 20MΩ (500V between circuit and case) |
|
|
Puncture test |
AC 3700V/rms (between circuit and case) |
|
|
External magnetic field |
<40A/m |
|
|
External electric field |
<1V/m |
|
|
Suitable for safety regulations |
IEC 61010 |
